Sling-Stik and Sling-Stik Lite User Manual


PLEASE READ THIS IMPORTANT USEAGE AND SAFETY INFORMATION BEFORE USING THIS PRODUCT.

!!! WARNINGS !!!

SLING-STIK PRODUCTS ARE INTENDED TO BE USED TO GUIDE AND POSITION SUSPENDED LOADS, AID IN MATERIAL HANDLING, GRAB, HOOK, PUSH, PULL OR GUIDE RIGGING AND VARIOUS MATERIAL HANDLING FUNCTIONS. THERE ARE MANY DIFFERENT TYPES OF ATTACHMENTS THAT CAN BE USED WITH SLING-STIK PRODUCTS, EACH WITH DIFFERENT CAPABILITIES AND USAGE PROFILE. SLING-STIK PRODUCTS ARE NOT INTENDED TO BE USED AS A PRY BAR!



Crush and Pinch Points: Avoid putting hands or fingers on or near hook when engaged with a suspended load.

Abuse/Impacts: Attachments are laser cut out of 1/4" steel or aluminum.The attachments are very strong but can be bent due to misuse, abuse and harsh work environments. Attachments are considered a wearable and replaceable item. Contact ADAMAR Industries for replacement parts.

CARE & MAINTENANCE: Visually inspect the tool before each use. There should be no major damage (cracks or loose components). Scrapes, scratches, dings, abrasions are expected during normal use. Replace tool if major damage is discovered. Keep tools clean and free from substances that could reduce your grip. (oil, grease etc.)

WARNING CA PROP 65: This product can expose you to chemicals including Nickel & Cobalt which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov



Installing & Changing Attachments

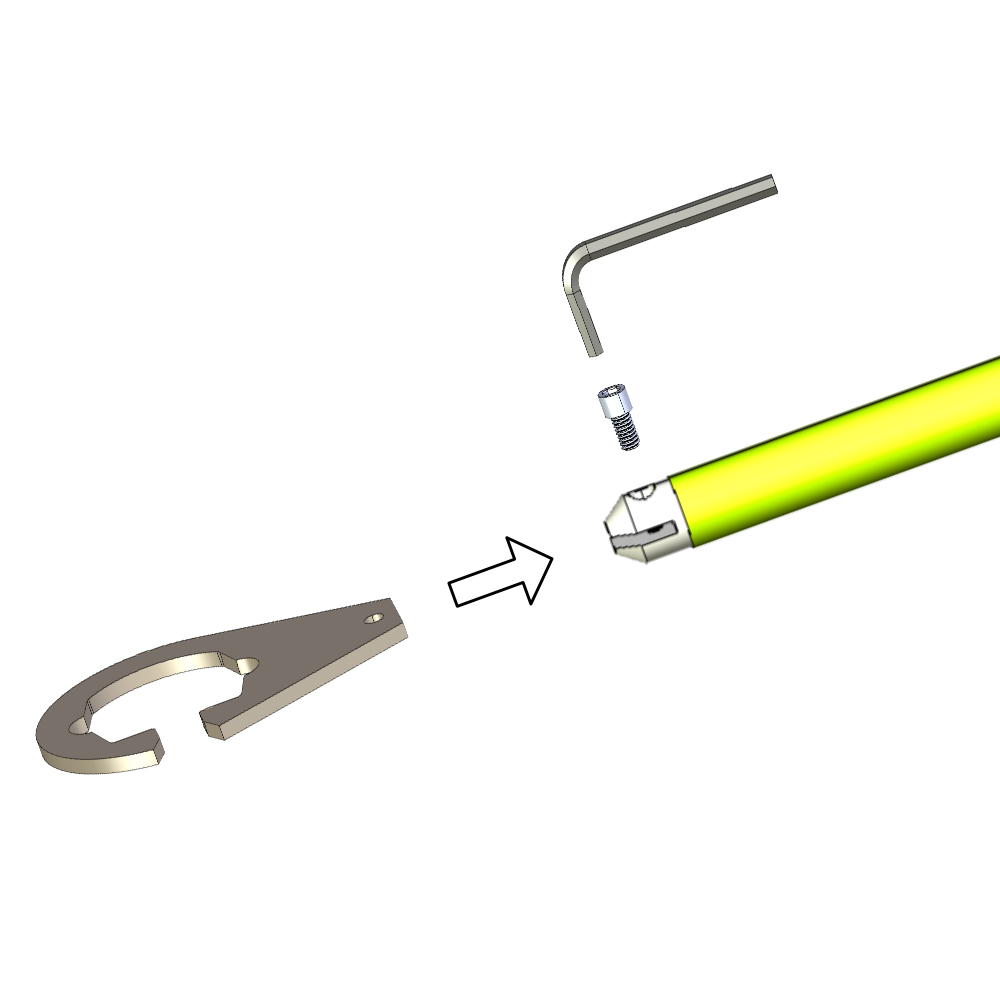

sling-stik attachment change

INSTALL ATTACHMENT While holding the attachment in one hand and the tool in another, insert the 1.5" wide flat side into the attachment head slot. Line up the holes in the attachment head slot and the attachment. Insert the cap screw and tighten down firmly and securely.

REMOVE/CHANGE ATTACHMENT While keeping a hold of the attachment and the tool, loosen and remove the cap screw with Allen wrench and remove the attachment.

KEEP YOUR ATTACHMENTS ACCESSIBLE AND ORGANIZEDIt's a good idea to keep your tools and attachments in a convenient and easy to access location near the area where work is being performed. A tool storage area or a no-touch tool storage board is a great way to keep track of your tools and attachments.

All Sling-Stik products include your choice of one attachment. Each attachment option package includes the attachment or attachments (depending on attachment option purchased), (1) 3/8 x 5/8 SS Socket Head Cap Screw & (1) 5/16 Allen Wrench. We offer a wide range of attachments on our website here: Sling-Stik Attachments



D-Handle Assembly & Inspections

D-Handle Replacement Kit Image

The D-Handle comes attached to sling-stik tools in the box. Our D-Handles have a proprietary dual push button adjustment or rotation system that allows the user to quickly adjust the orientation of the D-handle for the best grip or holding position for the job at hand. IT IS HIGHLY RECOMMENDED TO INSPECT AND ENSURE THE D-HANDLE IS POSITIVELY LOCKED AND REMAINS ATTACHED TO THE TOOL HANDLE. The D-Handle can be replaced if lost or damaged. Replacement kits are available on our website here: D-Handle Replacement Kit (Part# DHREPKIT)





Limited Warranty: Limited Warranty refers to and covers manufacturing defects only, for a period of 90 days from the date of purchase. Contact ADAMAR Industries LLC at info@adamarindustries.com or visit http://www.adamarindustries.com to initiate a warranty claim via our contact form. Misuse, abuse, excessive damage, modifications, alterations as well as normal/expected wear will not be considered as a cause for a warranty claim. Magnets are a wearable item and may need to be replaced.




Disclaimer: ADAMAR Industries LLC neither assumes nor accepts any liability and shall be held harmless for damages resulting from the use or misuse of this product. The buyer/user/Customer agrees that he/she is responsible for all damages and injuries caused by use or misuse of this product, which include death, dismemberment, injuries to self and others, property damages and product damages. By purchasing or using this product or providing this product for use, you agree to these terms. Visit https://adamarindustries.com for more information, videos and usage information. Questions, concerns and support Call 1 (888) 232-6275 M-F 9AM-5PM. ADAMAR INDUSTRIES, LLC. All Rights Reserved. Protected Under U.S. Patent: 9,975,254

sling-stik and sling-stik Lite User Manual


PROPER & IMPROPER USAGE SAFETY INFORMATION.

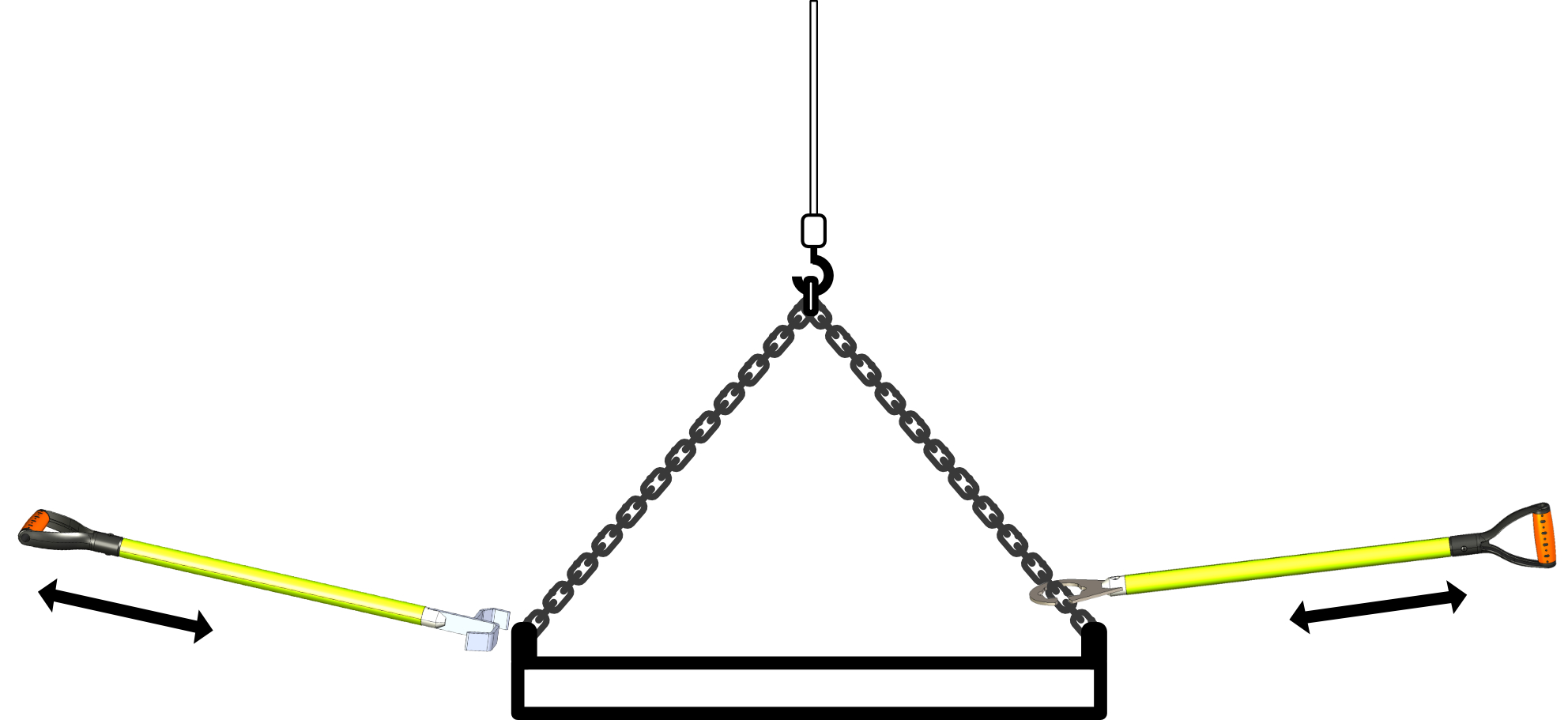

Sling-Stik products are designed and intended to provide a rigid, controlable extension from the human user to a suspended load that allows push and pull forces to be applied to the suspended load for control and positioning purposes. Sling-Stik products also help provide a buffer zone or more distance between the user and a suspended load. Sling-Stik can be used to help control, position or steer suspended loads such as: trench plate, shoring boxes, trench shields, large assemblies, beams, equipment, large diameter tubulars and other objects that are hoisted or moved via overhead crane or heavy equipment. A strong yet lightweight FRP tube along with a D-handle provides a durable, comfortable grip allowing a user unparalleled control, feel and precision when it comes to positioning heavy suspended loads. Sling-Stik models come standard with an adjustable "D" handle and the Sling-Stik Lite line comes standard with a straight rubber grip.

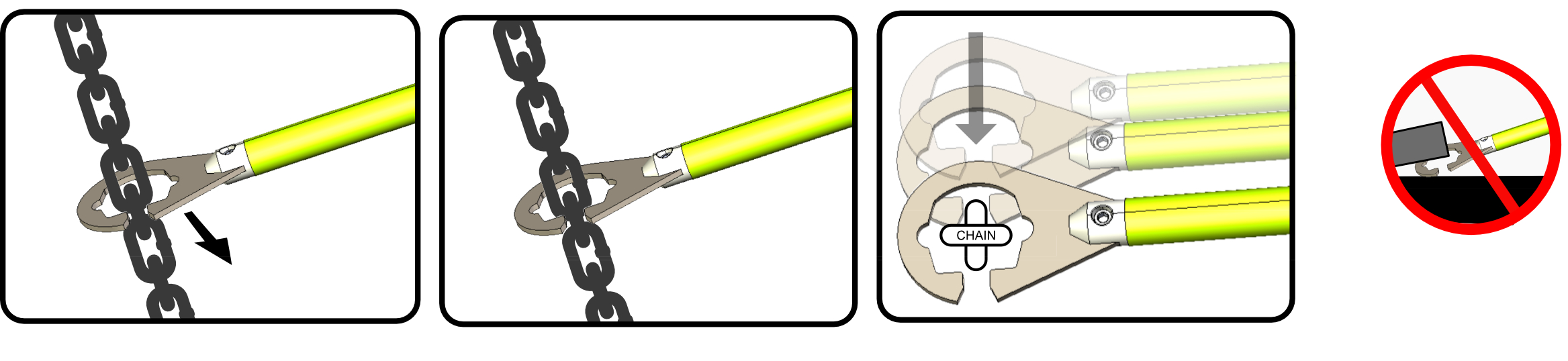

sling-stik and sling-stik Lite Proper and Improper Use Examples

SLING-STIK TOOLS ARE INTENDED FOR SUSPENDED LOAD CONTROL OPERATIONS AND USES ONLY. SLING-STIK TOOLS ARE NOT INDENDED FOR LIFTING STEEL OBJECTS!
